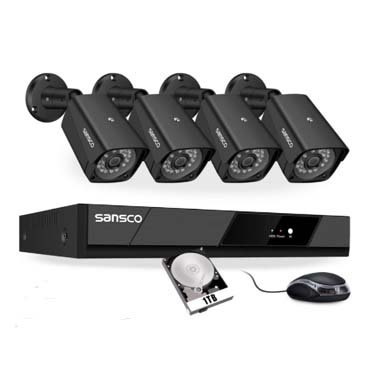

SANSCO PoE CCTV Security Camera System with 1TB Hard Drive, 4CH 2K NVR with (4) 5MP Outdoor IP Cameras

  • Score : ( )

Choose your country:


  • (Power over Ethernet) Plug and Play System - The camera kit comes with 18m network cables, which allows for easy installation and set-up. After connecting the cameras to the NVR ports, recording and live views can be seen within seconds via an HD TV or monitor. Important: We recommend you use only a 2K or 4K TV/monitor for this kit.
  • Stunning HD Display - This security camera system displays in a 2560 × 1920 HD detailed image, providing users with crystal-clear footage both during the day and at night. Enjoy our improved Night Vision feature which delivers a flawless display for up to 20m.
  • More than just Video - These listen-in security cameras come with a built-in microphone that can hear and record audio, which provides you with additional evidence (such as voices). It will extend your security coverage as well. Not only that, you will receive real-time alerts, including push notifications to your smartphones, email alerts and the warning sound of the NVR buzzer, whenever there is movement detected by those cameras.
  • Stable Wiring and Digital Signal - Unlike a CCTV DVR system, videos from the IP camera system will not lose quality or be destroyed by faulty cables. A strong digital signal maintains a 5MP high-definition image via 100m CAT6 or 80m CAT5 ethernet cables. Users will never have to worry about signal degradation which usually happen on coaxial cable of DVR and analog cameras even within 30m.
  • HDD Storage and Remote Playback - With pre-installed hard drive disk, videos can be recorded and stored for up to one week without being overwritten. With the versatile mobile app, all videos can be played back through your smart device anywhere, anytime.




SANSCO PoE CCTV Security Camera System with 1TB Hard Drive, 4CH 2K NVR with (4) 5MP Outdoor IP Cameras (2560x1920, Built-in Mic, AI Movement Detection Less Fault Alarm, Instant Email/Push Notification)

  • Connect IP cameras to the integrated power-over-ethernet (PoE) ports for a truly plug-and-play surveillance experience. Each camera only requires a single ethernet cable to connect it to the NVR thanks to PoE technology. Simply insert one side of the ethernet cable to the camera and the other to the NVR - and your cameras will be ready. This all-in-one cable provides both power to the camera and video transmission up to 300ft / 91m (Cables provided are approximately 18m). This means that you do not need to install your security cameras to a power outlet nearby.
Preview
  • Classic design simple but grand, feeling absolutely peace of mind wherever you are as long as the SANSCO security camera system is in your home/office. HD camera, crisp 1080p resolution offers you videos or pictures with accurate and natural colors during the daytime, and 36 IR LEDs for every camera enable good night vision. Smart motion detection makes sure that you know anything wrong or abnormal in real time. the DVR is perfect for the home or small business.

Features:

  • PoE Network Video Recorder Specifications
  • IP Video Input: supports 4 IP cameras
  • Video Output: Monitor or HDTV via VGA, HDMI
  • Playback: 4 cameras play simultaneously
  • HDD Installed: Pre-installed a 1TB HDD
  • Power over Ethernet Sockets: RJ45 X 4
  • USB Port: USB 2.0 x 2
  • Remote Access: iPhone/Android Phone, Windows PC. Local Access only for Mac PC

PoE IP Cameras Specifications

  • Image Sensor: 1/2.7" 5MP CMOS (2592x1944)
  • Lens: 80°@3.6mm
  • Night Vision: 15-20m, IR LED
  • Viewing Angle: Horizontal: 80°, Vertical: 58°
  • Audio: Built-in Microphone
  • Power: Power over Ethernet (PoE)
  • Working Temperature: -10° C +55℃ (14°-131° F)

Package:

  • 1x 5MP HD Network Video Recorder
  • 4x 5MP PoE Cameras
  • 4x 18M Cat5 Cables
  • 1x 1M Cat5 Cable
  • 1x 48V Power Adapter
  • 1x USB Mouse
  • 1x Quick Start Guide

Before Buy

  • Default NVR output resolution is set @1080p (1920x1080). If you are using a HDTV with resolution no less than 2560x1944 pixel, you can configure the NVR output resolution to a higher value to have the optimal image quality, you can configure the resolution here: Main menu > System > Display > Resolution. If you TV support maximum 1080p resolution, plesae do not attempt to change the NVR output resolution to any higher value.



Customer Reviews

    Technical Details

    PLAYBACK4 Channels of 5MP real time
    VIDEO4CH RJ45 input, HD output
    AUDIONot support
    NET INTERFACERJ45 10M / 100M
    HARD DISK1TB Internal Hard Drive Disk
    BROWSERSupports IE, Firefox, Chrome
    SUPPORT DEVICEiOS (iPad+iPhone), Android mobile viewing via App: Xmeye
    IMAGE SENSOR1/2.7" 5MP CMOS (2592x1944)
    RESOLUTION5.0 Mega pixels
    TV SYSTEMNTSC / PAL
    IR LEDSClass A Array LED
    OTHER FEATURES
    PRODUCT DIMENSIONS
    BOXED-PRODUCT WEIGHT
